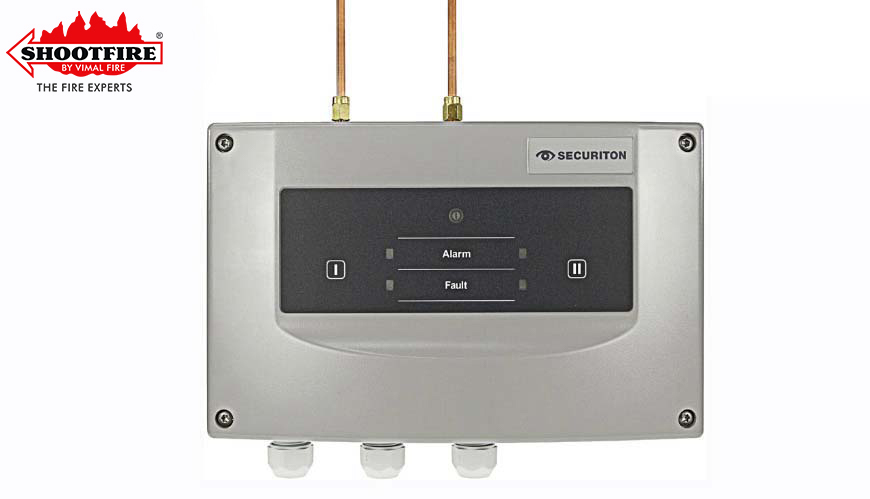

Fires occur more often in dangerous locations – with conventional fire detectors quickly reaching their limitations, the challenge is to find a solution which is reusable, long lasting and easy to Deploy. The Solution- Intelligent line-type heat detector “Securisens ADW 535” from Securiton which has decades of experience in the area of fire detection and fire alarm systems.

Whether the requirement is for fully automatic monitoring of large areas, resisting corrosive gases, extreme humidity and high temperatures or differentiating between false alarms and real danger – the state-of-the-art line type heat detector ADW 535 from Securiton does this effortlessly.

With ADW 535, which is VdS approved, fire detection is possible in all ambient conditions – not just in good weather and at room temperatures. Whether it is installed in gas and oil industry, in chemical production facilities or vehicle storage halls, loading platforms and road tunnels, the ADW 535 comes into its own where other systems fail.

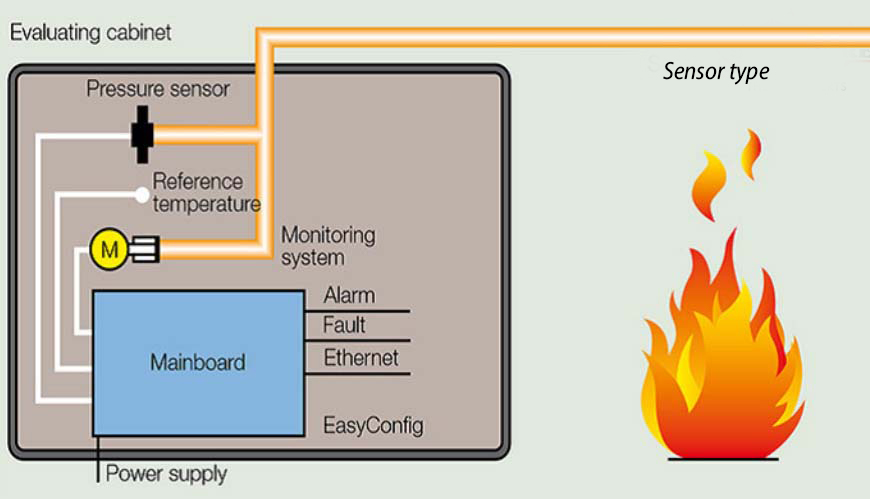

Many fires cause sharp increases in ambient temperatures. When this happens, the volume of heated air expands. The SecuriSens ADW 535 line type heat detector uses this physical principle to its advantage and detects fires at incipient stages.  The sensing tubes are made from robust materials such as copper, stainless steel or Teflon, which makes it reusable after short exposure to fires unlike other systems which need replacement of the sensor.

The Securi Sens ADW 535 has the feature of connecting two sensing tubes (Double Tube) which results in the monitoring area to be doubled. PESO approved versions can also be offered for installation in Hazardous locations in India. The permanent self-diagnosis, maximum protection from false alarms and precise setting options ensure problem-free operation year on year, and all without human intervention. The result is effective fire protection with a minimum of effort.

Features & Benefits:

• Fast detection ( within 10 Seconds)
• Wide temperature range -40° to +300° C
• Resistant to harsh outdoor conditions
• Resistant to external corrosion, dust and contamination
• Resistant to mechanical, chemical and electrical in­fluences
• Copper, Stainless Steel and Teflon sensing tubes for detection
• Self-Diagnostic system for Fail Safe feature
• Device set-up and analysis functions via built-in Software over Ethernet
• Event logging, Online Monitoring, Real-Time remote messaging over Internet
• VdS approval for EN 54-22, Class A1

Areas of Application:

• Floating Roof Storage Tanks for Rim Seal Fire Protection
• Waste Incineration Plants
• Vehicle Parking Area
• Road Tunnels
• Food Processing Industries
• Distilleries
