Pioneer in Fire Safety and Security solution, Vimal Fire Controls is India’s leading manufacturer of UL-Listed High Volume Long Range Foam Monitors, arguably one of the most Sophisticated, WORLD CLASS & MADE IN INDIA products. We offer an exhaustive range of SHOOTFIRE brand FOAM MONITORS Foam monitors ranging from 500 USGPM up to the 10500 USGPM. These FOAM MONITORS find handy application in industries like Oil Drilling & Exploration, Refineries and Hydrocarbon Units, Petrochemical complexes and Marketing Depots, Airport Authority of India, Power Plants, Ports, Shipping Lines, Defence, etc.

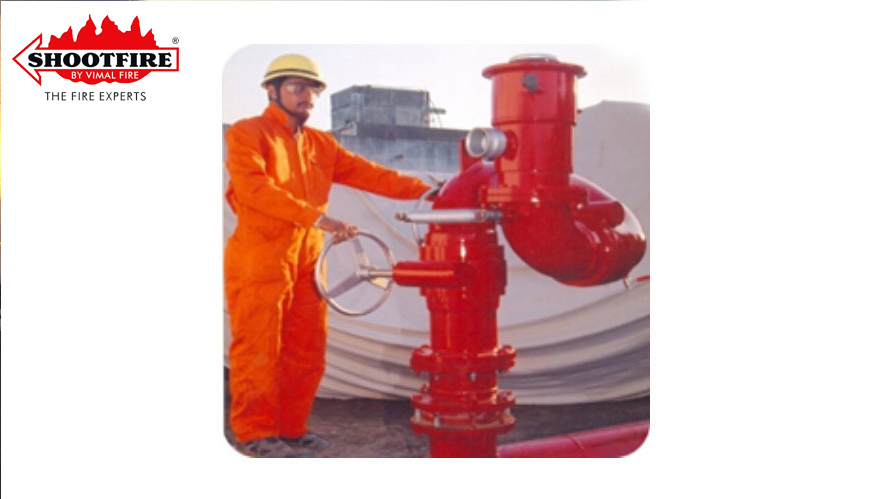

The 2000-3000-4000 USGPM UL-LISTED FOAM MONITOR or just 4000 USGPM Foam monitor has sturdy and robust in construction. It is Manufactured using high-grade Stainless Steel (SS-304, 316, 316L, etc.), R&D team has even tested it at a pressure of 23KG/. The inlet - 8” and outlet - 8” connection is provided in this version of the Monitor.

The Aqua Foam Nozzle forms the discharging part of this advanced monitor that ensures maximum hydraulic efficiency in the conversion of the available pressure energy to maximum throw, even after the induction of foam concentrate into the water stream. The Operating working pressure of these Foam Monitor ranges from 7Kg/Sq.cm or 7 bar to 10.5 Kg/Sq.cm or 10.5 bar.

The nozzle construction also allows the maximum discharge range. Our 4000 USGPM Foam Monitor can also provide variable flows of 2000 & 3000 USGPM by the setting at the nozzle. The distance of the throw at an elevation of 30° -35° with a pressure of 7Kg/Cm2 or 7 bar at the Nozzle are as given below :

Capacity	Throw of Water	Throw of Foam
2000 USGPM -	80 meter.	75 meter.
3000 USGPM -	85 meter.	80 meter.
4000 USGPM -	90 meter.	85 meter.

These Monitors comes with online variable flow Management, and these variable flow can be managed through a Remote panel or Wireless Remote Control.

The non-aspirating Aqua Fog & Foam type nozzle allows multiple utility modes like Single Stream Jet Operation, Fog Operation, and Semi Fog Operation. The Fog conversion of up to 120° wide enables handling of toxic, hazardous gas cloud dispersion and more efficient water cooling of heated or burning surfaces.

These Aqua Foam Monitors allows Fire Fighters to select right discharge flow rate depending on the fire scenario, efficiently saving a lot of water and foam in the process.

We offer our versatile Long Range Foam Monitor with different operating methods like:

• Manual operation through hand wheel: it can be operated manually even during the Monitor operating at high pressure.
• Remote Operation through geared motors and control panel: This device can also be operated remotely using Motors and cut-off switches from a remote location. It is one method being used these days to avoid human venturing near big fires, thus helping in any human casualties
• Operation through a microprocessor-based, flameproof wireless remote controller. Monitor can also be controlled and operated using Wireless Remote Controller. With operating range being 150 meters, it is one of the latest wire-free ways of extinguishing big fires from a safe distance.

Features & Benefits:

• Throw range: 80-90 meters with Foam and 75-85 meters with Water
• Low expansion –minimal loss of Foam due to breakage and thermal updraft
• Quick changeover from JET to FOG SPRAY to dilute/Disperse Toxic & Hazardous Gas and keep the surrounding cool
• Multiple control Methods like Manual / Remote – Wired / Wireless Remote Handheld
• Greater ­Flexibility and accurate proportioning in conjunction with Aqua powered Jet Controller (JRCP).
• Easy maneuverability in horizontal 360° (Manual) & 340° (Remote Controlled) and (+90°,-45°) vertical plane.
• No major maintenance required
• Available in manifold versions – Stand Post / Trolley / Trailer / Vehicle mounted
• UL Listed up to 4000 USGPM Foam Monitor

Advantages:

• Substantial Cost Saving: Larger reach
• Online Variable Flow Management from Remote Control Console or Wireless Remote
• Major Emergency: Better reach, larger volume, Quicker Extinguishing Fires – Always be One-up
• Multiple Operations: Jet, Fog-Spray & Semi-Fog spray
• Multiple Control method: Manual, Remote Controlled Panel & Wireless Remote Control
• Flow: Fixed and variable ­flow(optional)
• UL-Listed

Application Areas:

• Oil Drilling
• Exploration
• Refineries
• Pipelines
• Oil Marketing Units
• Petrochemical Complexes
• Power Plants
• Fertilizer Industries
• Ports
• Shipping etc.
