SHOOTFIRE Rim Seal Fire Protection System
Vimal’s Make in India, World Class Product, Best First Aid solution to detect & extinguish any fire on Floating roof tank at an incipient stage. Installed on more then 800 tanks in India & abroad. Out of 800 tanks almost 600+ installations on live product / hydrocarbon tanks in service.
Rim area on floating roof tanks is quite vulnerable & prone to Fire as hazardous gases are always present in the area.

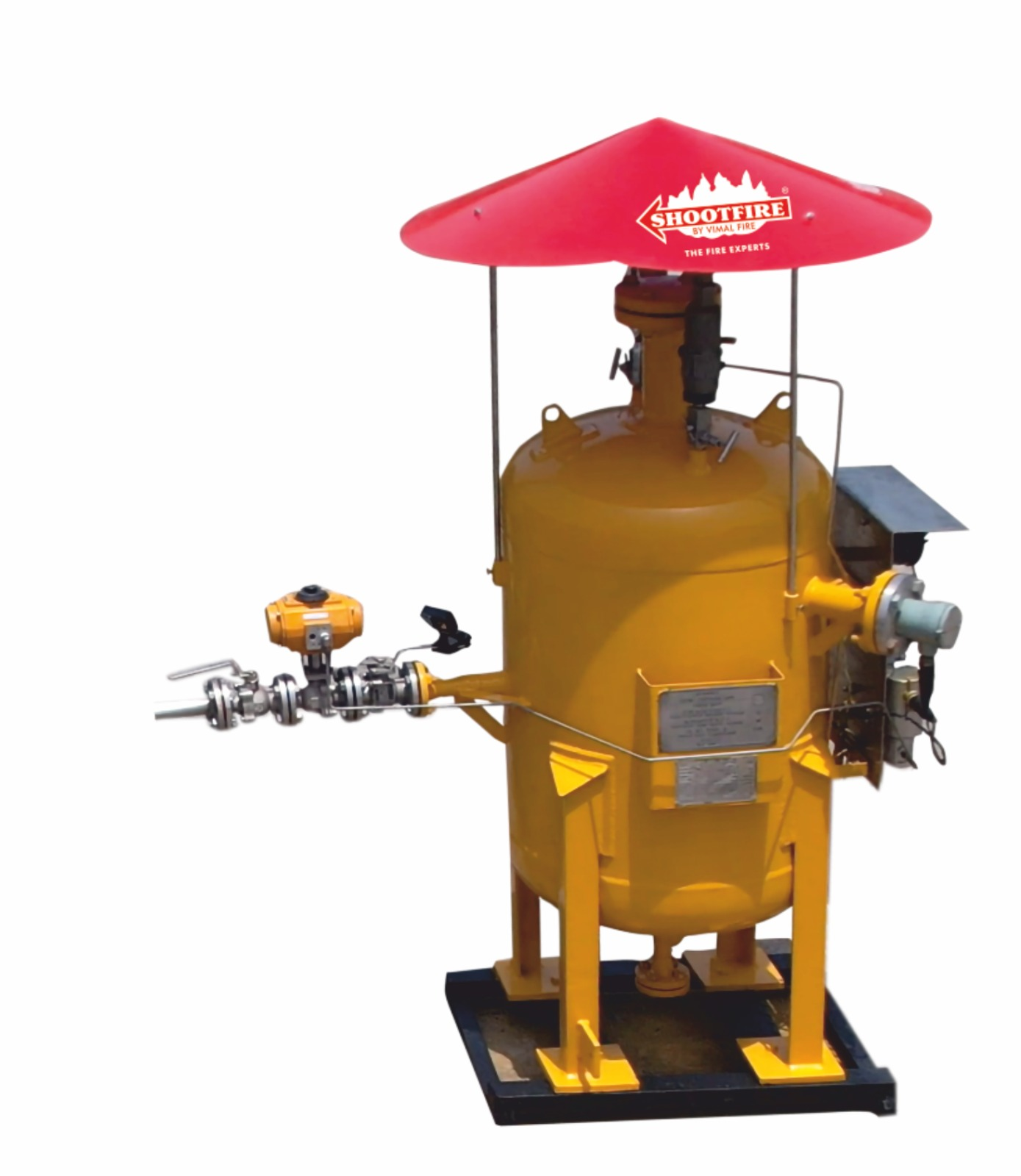

The SHOOTFIRE Branded Rim Seal Fire Protection System for Floating Roof Fuel Storage Tank is a fully automatic Fire Detection cum Suppression System to protect Rm area. Specially designed and manufactured for quick detection and extinguishing of any Rim Seal fires as per the National & International Safety standards.
The Automatic Rim Seal Fire Detection and Extinguishing system detects even incipient fire in less than 10 seconds and suppresses the rim seal fire on a floating roof, within 40 seconds from Starting of Fire. It is a First Aid system and acts as a watch Dog round the clock. The systems operate without any human intervention and simultaneously also alerts operators / Fire department in case of an alarm.
Vimal Fire’s rim seal fire protection system uses of sate of art technology for detection of fire. Detection is done using linear metallic sensor (Copper/SS) having EN approval of Type A1, as per EN 54-22 standard, UL, VdS and other approvals of various competent agencies worldwide. An intelligent evaluation unit senses the ‘Rate of Rise’ in temperature & maximum temperature beyond the preconfigured parameters through a highly sensitive hollow metallic tube in the non-pressurised state.

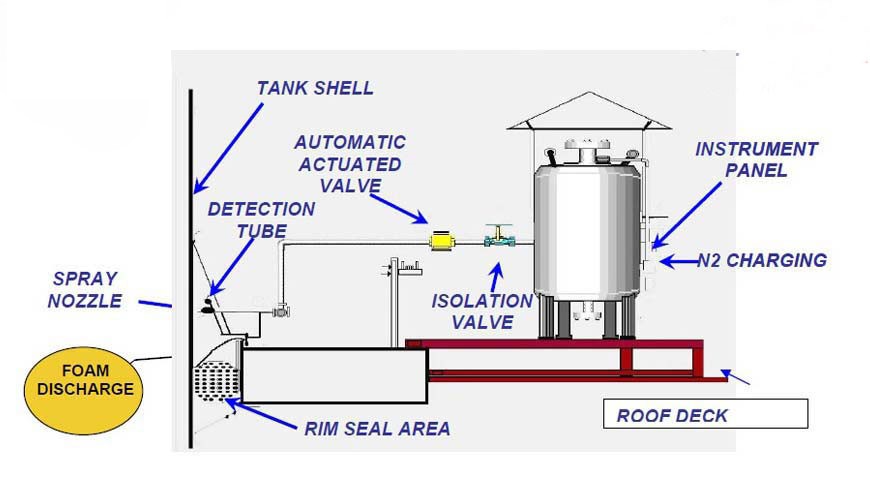

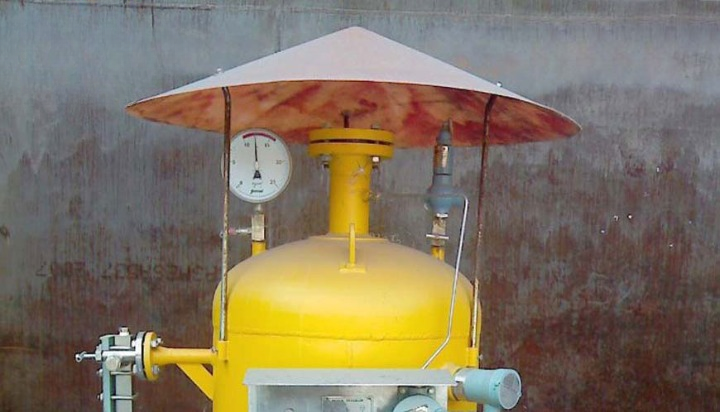

The extinguishing system consists of vessels are permanently pressurised with Nitrogen as an expellant gas and UL listed discharge nozzles which delivers extinguishing agent (AFFF) UL-Listed at 18 LPM/M² as per OISD / 20 LPM/M² as per NFPA standard application rate on to the Rim Seal area through UL-Listed foam spray nozzle, to extinguish the incipient fire within 40 seconds of fire detection.
Features
- EN Class A1 certified heat detection system for response behaviour
- UL-Listing at the Component level in this custom built Solution.
- Only System for quick detection of Hydrocarbon Fire on the Rim Seal area of Floating Roof Storage Tanks
- Environmentally-friendly detection and suppression system
- Immune to Mechanical, Chemical & Electrical interferences
- Event logs – for specific parameters & Events
- Self-Diagnostic and fail-safe features for Continuous monitoring of parameters in a remote location and remote area in real-time mode.
- The system is installed on an operational Tanks without downtime / shut down / outage of tanks.
- Auto-sensing Mechanism needs minimum human intervention
Benefits
- System designed to be installed on hydrocarbon product filled storage tanks without any hot job requirement on the tank top / roof
- Highest percentage of safety till date for Floating Roof Tank related Fire Hazard
- The system has provision to send a signal to Rim Seal Fire panel situated in control Room, with Annunciator and Graphic Console so that that operator can get alarmed/Continuous monitoring.
- More than 650 tanks in various Oil Installations are safeguarded with this Solutions.
