Mild steel portable CO₂ cylinders tend to corrode over time causing the C02 gas to leak and is one of the leading causes of failure of CO₂ extinguisher during operation. Due to unavailability of pressure gauge on the CO₂ extinguisher, detection of leakage becomes difficult.

IS 2190 – Indian Standard for maintenance of CO₂ Extinguishers has been drafted to overcome this limitation and have clearly stated under section 11.3(e) – maintenance clause – C02 extinguishers to be inspected every quarter for weight compliance.

Being pioneers in fire fighting industry, we take immense pride in introducing “CHARGE INDICATOR” for detecting any leakages of CO₂ Gas from the CO₂ Extinguisher. The CHARGE INDICATOR detects any decrease in the extinguisher’s weight due to leakage of CO₂ gas over a period of time and gives a clear indication to any passer-by for immediate action. Under normal conditions, it indicates “FULL”- in Green Colour and “EMPTY” in Red colour for easy identification of leakage.

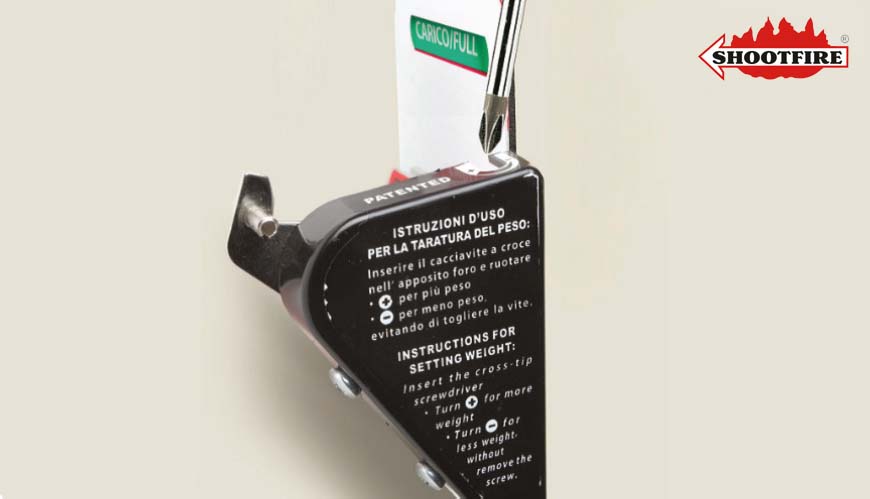

The CHARGE INDICATOR has an inbuilt calibration option to accommodate various makes of CO₂ extinguishers thereby making it a universal product. The CHARGE INDICATOR can be installed within 15 minutes by any skilled labourer simply following the instructions provided in the leaflet. As a standard feature, it comes with a removable bar to avoid contact of CO₂ extinguisher with the wall thereby maintaining aesthetics of the surroundings. This also eliminates the standard process of placing the CO₂ extinguisher on the ground which acts a safety hazard.
